Tkinter-Designer

figma设计Tkinter界面

参考文档

  • https://github.com/ParthJadhav/Tkinter-Designer

tkdesigner

  • pip3 install tkdesigner

  • sudo apt-get install python3-tk

  • tkdesigner -h

    usage: tkdesigner [-h] [-o OUTPUT] [-f] file_url token

Generate TKinter GUI code from Figma design.

positional arguments:
  file_url              File url of the Figma design.
  token                 Figma token.

optional arguments:
  -h, --help            show this help message and exit
  -o OUTPUT, --output OUTPUT
                        Folder to output code and image assets to. Defaults to current working directory.
  -f, --force           If this flag is passed in, the output directory given will be overwritten if it exists.

  • git clone https://github.com/ParthJadhav/Tkinter-Designer

  • cd Tkinter-Designer/gui

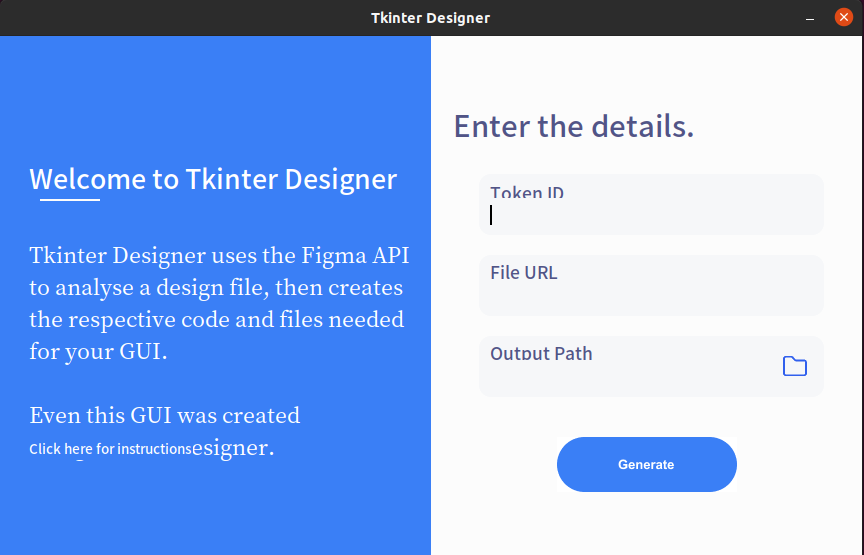

    • python3 gui.py

token ID

  • [账户头像] -> [Settings] -> [Account] -> [Personal access tokens]

    • 输入token描述，按Enter键，自动生成token

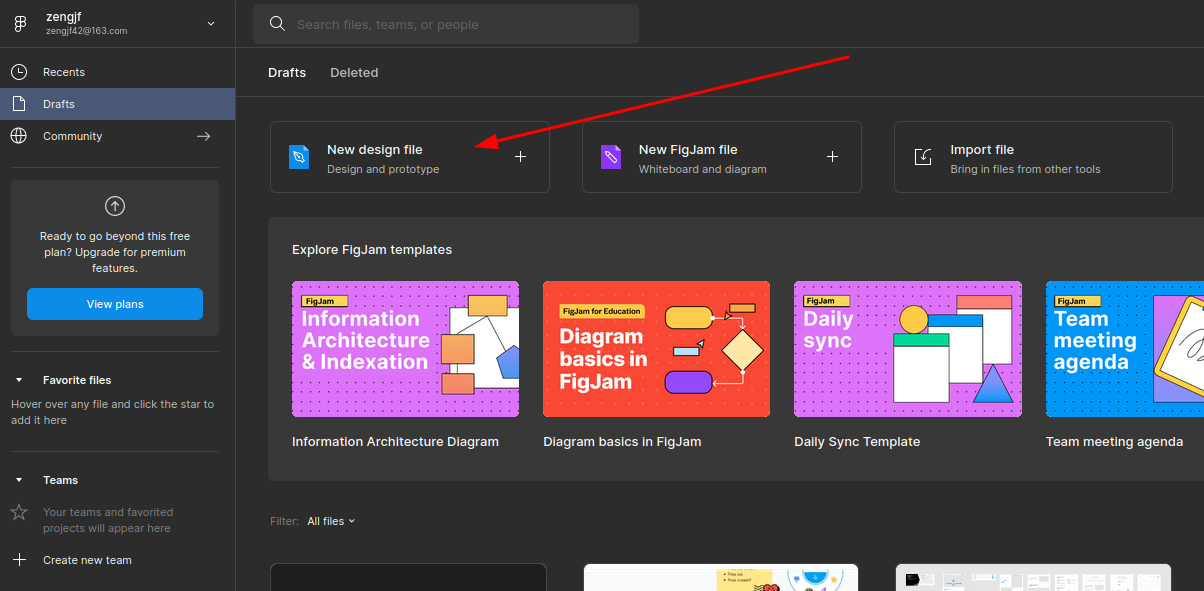

New design file

创建设计文件

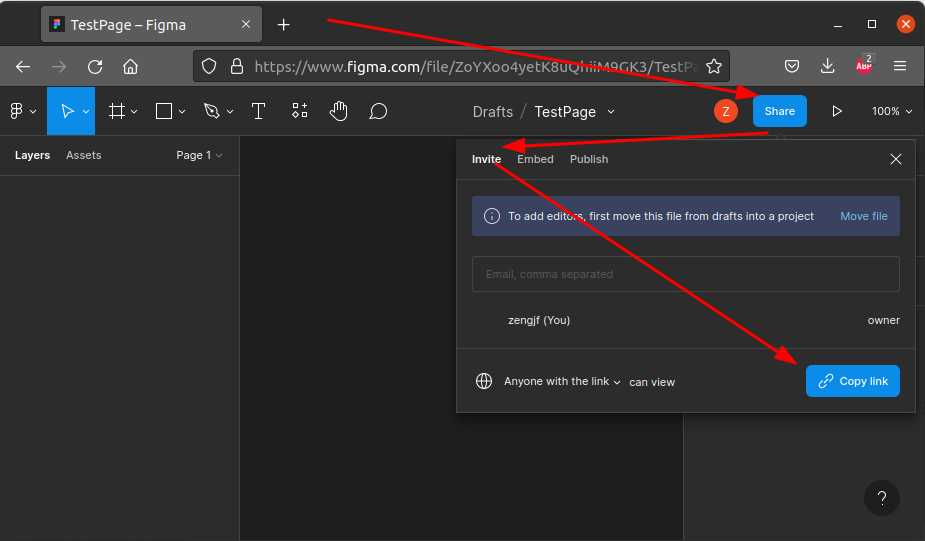

获取url: https://www.figma.com/file/ZoYXoo4yetK8uQhiiM9GK3/TestPage?node-id=0%3A1


转换

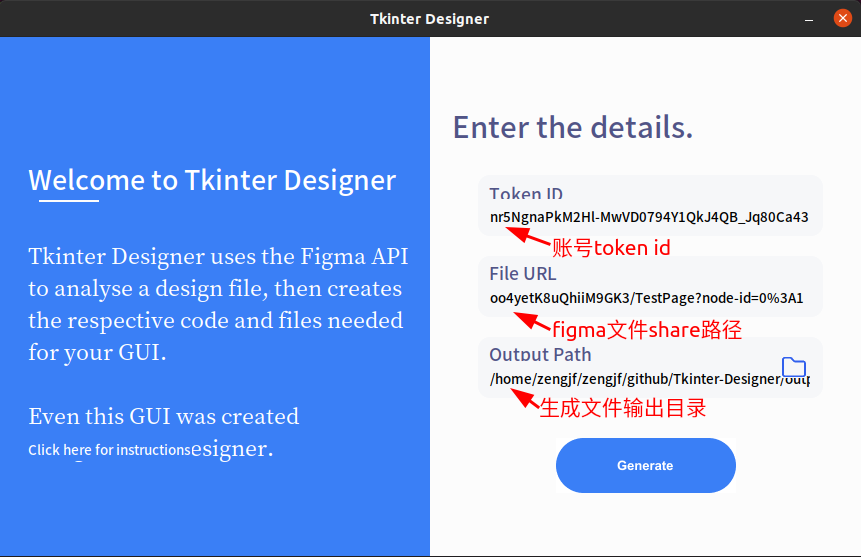

转换填写如下图

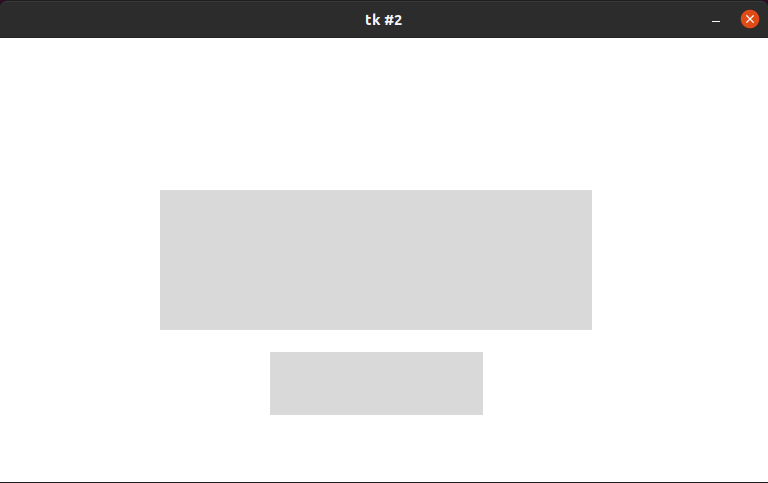

转换输出文件

.
└── build
    ├── assets
    │   ├── button_1.png
    │   └── button_2.png
    └── gui.py

2 directories, 3 files
